The 6 mm reference
These eccentric bushings are the GN 715.2-6 version. The researched dimensions are a 6 mm bore, 12 mm outside diameter, 2 mm eccentricity and 9.9 mm length. The body is blackened steel; the listed DIN 915 set screw is stainless steel.
Intended component relationship
The source describes the GN 715.2 family as an adjustment component for GN 714 and GN 715 side-thrust pins. The offset arrangement allows the spring-loaded locating pin's position to be adjusted to suit the workpiece tolerance. This specific relationship should not be generalized into a replacement for unrelated vehicle or machinery bushings.
Check the exact side-thrust-pin size and drawing before choosing the bushing. Other bore sizes in the family are different references, and their dimensional values should not be transferred to GN 715.2-6.
What the request represents
One proposed request unit represents the GN 715.2-6 component. It does not include a side-thrust pin, fixture body or complete positioning assembly. Confirm the mating components and mounting requirements separately rather than inferring them from the illustration.

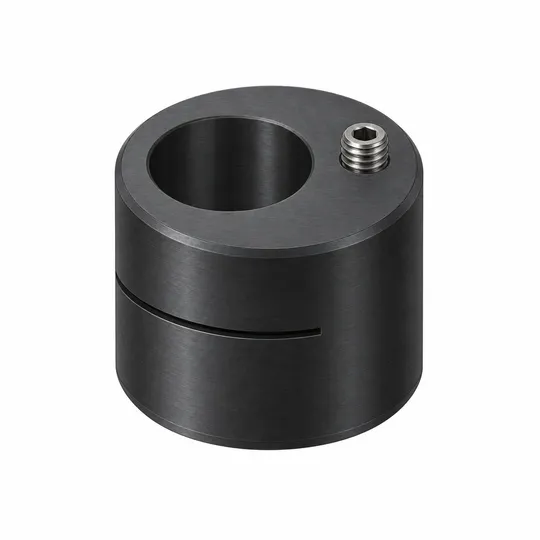

The picture is not a dimensional drawing. Use the source-backed specification to assess the bore, outside diameter, eccentricity and length.
Understand the offset
The eccentric bore places the side-thrust pin away from the bushing's centre. Changing the bushing's orientation changes the pin's position relative to the surrounding fixture. The documented purpose is to adjust the locating position to suit workpiece tolerance. Use that component relationship when identifying this product, rather than selecting it solely because another part is also called an eccentric bushing.
The 2 mm eccentricity is a geometric offset recorded for this reference. It is separate from the 6 mm bore, 12 mm outside diameter and 9.9 mm length. The usable adjustment in a completed fixture depends on the mating arrangement and clearance; the offset value alone does not define an approved adjustment range for every installation.
Check the mating family and materials
These eccentric bushings are documented for the GN 714 and GN 715 side-thrust-pin families. Preserve the exact mating pin reference when checking the 6 mm version. The same family table also lists larger bores, which are separate products. A request for several GN 715.2-6 units remains a request for the same size throughout.
The material descriptions belong to different pieces: blackened steel for the bushing and stainless steel for the DIN 915 set screw. Keep that distinction when comparing requirements for the assembly. A request for this component does not establish that the complete assembly is stainless steel or suitable for an unspecified corrosive environment.
Request availability
Enter the requested number and review the exact SKU with your name and email. The final confirmation records interest only. Availability, final price and delivery timing will be confirmed before any purchase. No payment is collected and no charge, order or fulfillment is authorized.
Questions about GN 715.2-6
- Are these eccentric bushings for vehicle suspension?
- The researched reference is for GN 714 and GN 715 industrial side-thrust pins. No vehicle compatibility is claimed.
- Is the side-thrust pin included?
- No. It is a separately identified mating component.
- Which bore size is this?
- GN 715.2-6 is the researched 6 mm bore version, not the larger sizes shown in the family table.
- Is the entire component stainless steel?
- No. The listed bushing is blackened steel; the DIN 915 set screw is stainless steel.
