The pack reference
These spherical washers use the exact CL-1-SW-PACKOF2 reference. The listing specifies a bolt size of 1/4 inch or M6. The pack-of-two wording is retained in the request, but it does not establish that the package contains two complete mating washer sets.
Dimensions from the drawing
The recorded A diameter is 9/32 inch and B diameter is 5/8 inch. C is 3/16 inch, D diameter is 5/16 inch and R is 3/4 inch. Keep each value with its drawing letter when comparing the component with your clamping assembly.
The bolt-size description is not a thread specification for the washer itself. Check the required washer arrangement, seating surfaces and surrounding hardware against the source drawing. This page does not specify a tightening torque, load rating or permitted angular correction.
Confirm package contents before purchase
One request unit represents one supplier unit identified as CL-1-SW-PACKOF2. Before any purchase, the exact physical contents need to be confirmed. Do not count this as two full pairs, or multiply assembly requirements on that assumption.
No bolt, nut or complete clamp is represented as included. The illustration is not a packing list and should not be used to infer a component count.
How spherical seating is used
Spherical washers are used where a clamping stud and the surface receiving the clamping force are not exactly perpendicular. The family uses mating curved seating surfaces to accommodate that relationship. This is why the complete washer arrangement matters when selecting a component; the profile is part of the assembly's function.
The listed 1/4-inch or M6 bolt size is a compatibility description for the washer opening. It does not make inch and metric bolts interchangeable elsewhere in the clamp. Preserve the required bolt thread, nut and mating hardware specifications from your assembly drawing, then compare the washer dimensions and seating arrangement separately.
Review the complete seating arrangement
Compare A and B diameters, C, D diameter and R with the source drawing before checking the surrounding clearance. R is recorded as a drawing dimension; it is not a permitted tilt angle. The product table does not provide an application-specific load rating or tightening instruction for your assembly. Those checks belong with the applicable engineering and installation documentation.

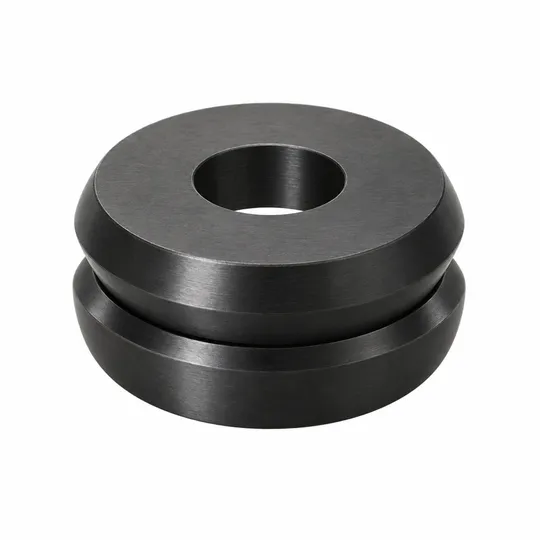

The illustration can show the general curved form, while the written reference identifies the specific item being requested. Use the drawing when comparing mating profiles and the package description when checking the number of supplied pieces. Neither a product photograph nor the appearance of two curved parts establishes that two complete washer assemblies are included.
Keep the pack reference on the request
The PACKOF2 suffix remains attached to the SKU through the availability review. For spherical washers, this is useful because a piece count and a count of complete mating sets can mean different things. Requested quantity is the number of units bearing this supplier reference. The later confirmation must resolve the actual contents before converting a required assembly count into a purchase quantity.
Request availability
Enter your requested number of supplier units and review the exact SKU with your name and email. Confirmation records interest only. Availability, final price, package contents and delivery timing will need separate confirmation. No payment is collected and no fulfillment is authorized.
Questions about CL-1-SW-PACKOF2
- What bolt size do these spherical washers accompany?
- The listing gives 1/4 inch or M6. Check the complete assembly and drawing before purchase.
- Does PACKOF2 mean two complete washer pairs?
- That has not been confirmed. The request preserves the supplier's exact pack reference without assuming two complete pairs.
- Are a bolt and nut included?
- No bolt, nut or full clamp is represented as included in this request.
- Can the image confirm the package contents?
- No. It is an illustration. The exact supplied contents must be confirmed separately.
