The standard-mount reference

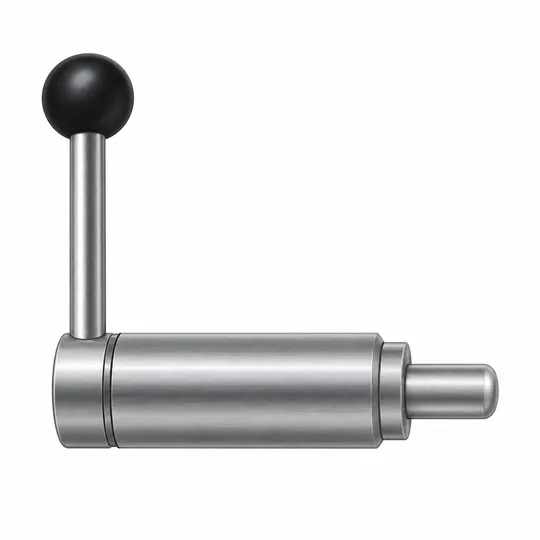

These index plungers are the CL-22006-SIP straight index-plunger reference with rotary-cam operation and standard mounting. The listed plunger diameter is 1/2 inch. This page does not combine other mounting styles or diameters under the same request.
Plunger and body dimensions
The drawing's A diameter is nominally 3/4 inch, with ground limits of 0.7515 to 0.7518 inch. That body dimension is separate from the 1/2-inch plunger diameter. B is 1 3/8 inches, D is 1 1/8 inches and E is 3 inches.
The remaining recorded values are F 7/16, G 5/16, H 5/16, J 3/32, L 1/8 and M diameter 7/8 inch. Compare each letter with the drawing rather than treating every value as a mounting dimension. The page does not establish a locking load, actuation force or completed mechanism's safety function.
Match the assembly
Check the exact plunger reference, mounting arrangement and available clearance against the equipment drawing. A similar-looking handle does not establish the same body fit or plunger diameter. No surrounding fixture, receiving bushing or installation hardware is represented as included.
Indexing and the receiving position
Index plungers use a retractable, spring-loaded plunger to engage a corresponding receiving position. The family includes straight and tapered designs as well as different mounting and operating arrangements. CL-22006-SIP identifies the straight, rotary-cam, standard-mount version. Keep all three descriptors with the part number when checking a replacement for an existing mechanism.
The receiving feature and surrounding fixture are part of the complete assembly. Check their references independently, including the intended alignment and the space available to operate the component. A matching plunger diameter alone does not confirm the fit of the body, the mounting arrangement or the location of the receiving feature.
Separate the plunger from the ground body
The 1/2-inch plunger diameter describes the part that engages the receiving position. The nominal 3/4-inch A diameter describes a different body feature, with actual ground limits recorded as 0.7515 to 0.7518 inch. These index plungers therefore have two diameter checks that should not be collapsed into a single size description on a parts list.
The difference between those two ground limits is 0.0003 inch. Retain both limits when comparing the product drawing, rather than replacing them with the nominal fraction. This is the published component dimension; it does not specify a mating bore or authorize changing the fixture to a new fit. Resolve installation dimensions using the appropriate assembly documentation.
A practical replacement comparison
Compare the full CL-22006-SIP reference first, then the straight plunger, rotary-cam operation, standard mounting and lettered dimensions. Read B, D and E with their drawing positions instead of assuming that the longest number describes overall height. Follow with the smaller features F, G, H, J, L and M diameter so a less visible mounting detail is not overlooked.
One requested unit is one component of this exact reference. If separate fixtures each require this index plunger, count those component locations individually. Keep receiving bushings and installation hardware separately identified on the assembly list. The interest confirmation retains the SKU and unit count; it does not include the surrounding fixture or authorize assembly work.
Quantity and confirmation
One proposed unit is one CL-22006-SIP component. Enter the requested number, then review the SKU, quantity, name and email. Confirmation expresses interest only. Availability, final price and delivery timing must be confirmed separately before any purchase. No payment is collected and no order or fulfillment is authorized.
Questions about CL-22006-SIP
- What is the diameter of these index plungers?
- The plunger diameter is 1/2 inch. The body A dimension is separately listed as nominal 3/4 inch.
- Which mounting type is this?
- The researched reference is the standard-mount, straight rotary-cam type.
- Does the illustration give mounting tolerances?
- No. Use the written specification and source drawing, including the actual ground diameter limits.
- Can I request another mounting style here?
- This page records interest only in CL-22006-SIP. A different style needs a separate verified reference.
