The C2.00X008.8 reference
These neoprene O rings are the C2.00X008.8 metric reference. The cross section is 2.00 mm and the inside diameter is 8.80 mm. The listing identifies black neoprene at 70 durometer. Keep these four details together: size, material, hardness and exact SKU.
The source also records inch equivalents of approximately 0.079 inch for the cross section and 0.346 inch for the inside diameter. This is still the metric product reference. Do not round the converted dimensions to a convenient inch fraction and treat that as an independently verified replacement size.
Inside diameter and cross section of neoprene O rings
Inside diameter and cross section describe different features of an O-ring. Here, 8.80 mm is the opening dimension and 2.00 mm is the cross section. The order of those values matters when comparing a supplier description, parts list or drawing.
Start a replacement comparison with the original equipment reference whenever possible. If only an old ring is available, do not assume that its current shape or stretched diameter establishes the intended new-part dimensions. Resolve the specification before a purchase rather than selecting whichever listing looks closest in a product image.
Neoprene as the specified material
Neoprene is the trade-name description commonly used for chloroprene rubber, also identified as CR in material documentation. The source's material guide describes a range of applications and limitations. That context explains why material identity matters, but it does not approve this particular ring for an unspecified fluid or piece of equipment.
The researched C2.00X008.8 ring is 70 durometer. Another elastomer can also be black and have the same hardness, so neither appearance nor hardness alone establishes the correct compound. The material requirement should come from the equipment specification or an appropriate compatibility assessment.
Application conditions to check
The material guide discusses uses involving refrigerants, ammonia and water, while identifying limitations with several other chemical groups. A broad family description should not be interpreted as compatibility with every formulation in that group. Actual media, additives, concentration and operating temperature still matter.
Before choosing neoprene O rings, identify what the original design calls for and whether the application has changed. A replacement decision should not silently change material just because a different ring shares the nominal dimensions. This page does not establish pressure, temperature or chemical approval for the customer's installation.
Keep the product match separate from the request
The availability form records interest in one exact SKU. It is not a configurator that chooses a material for you, and it does not substitute another compound when the requested item is unavailable. C2.00X008.8 remains the reference associated with the request.
Use the specification to decide whether this is the item whose availability you want checked. If the original part calls for a different hardness, profile or size, that is a different product question. A later supply confirmation must retain the exact reference or explicitly resolve the difference before any purchase.

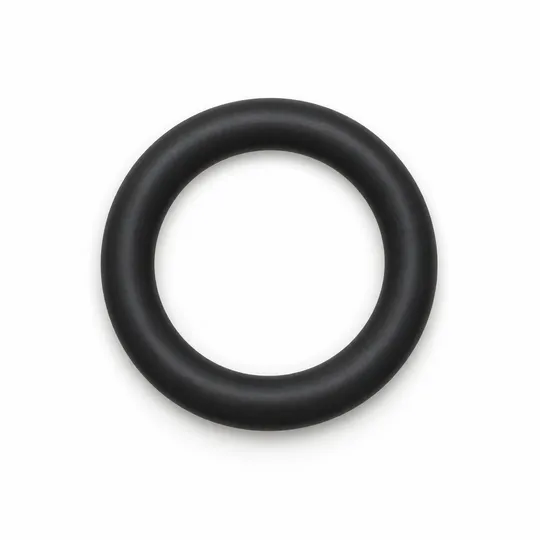

Reading the illustration and specification
The image provides a visual reference for the ring type. It is not a photograph of your eventual supplied unit, a scale drawing or a material certificate. The displayed diameter, thickness and lighting cannot prove fit or compound identity.
The written dimensions and product reference provide the useful comparison. Keep any dimensional tolerances and installation requirements from the equipment documentation with that comparison. This page does not invent tolerances that are absent from the recorded listing.
How the proposed 100-ring pack works
One proposed Plethara pack represents 100 C2.00X008.8 rings. The quantity field asks for packs, not individual rings. Two packs represent 200 rings of the same exact reference. The review screen retains the proposed grouping alongside the requested quantity so the intended total is clear.
This grouping is for the availability inquiry. It does not establish a supplier's packaging method, promise an available quantity or set a final price. It also is not an assortment: the proposed pack does not contain different diameters, materials or hardnesses.
What is outside this product request
The requested product consists of the identified rings. It does not include a complete equipment repair kit, installation tools or a material-testing service. Other components required for maintenance must be identified separately rather than inferred from an image of an assembly elsewhere.
If you are comparing several potential replacements, keep their exact references distinct. Combining the dimensions from one listing with the material from another would describe a new, unverified product. This page preserves the researched C2.00X008.8 specification throughout the availability process.
Requesting neoprene O rings
Enter your name, email and requested number of packs. Review the exact SKU and proposed grouping before the final confirmation. The request lets us follow up about this specific product; it does not reserve stock or authorize an order.
Availability, final price and delivery timing will be confirmed before any purchase. No payment information is requested, no payment is collected and no charge is made. Confirmation is interest only, with no fulfillment authorized. The final terms remain a separate step from submitting this request.
Questions about C2.00X008.8
- What dimensions do these neoprene O rings have?
- C2.00X008.8 is listed with a 2.00 mm cross section and 8.80 mm inside diameter.
- Are they nitrile or neoprene?
- The exact listing specifies neoprene, also described as chloroprene rubber or CR. Nitrile is a different material.
- Does a quantity of one mean one ring?
- No. In this availability form, one proposed pack represents 100 rings. Review the pack basis before confirming.
- Are other sizes included in the pack?
- No. The proposed 100-ring grouping is for C2.00X008.8 only, not a mixed-size assortment.
- Can the illustration establish the material or fit?
- No. Use the recorded specification and the equipment requirements. The illustration is not a dimensional or material inspection.
