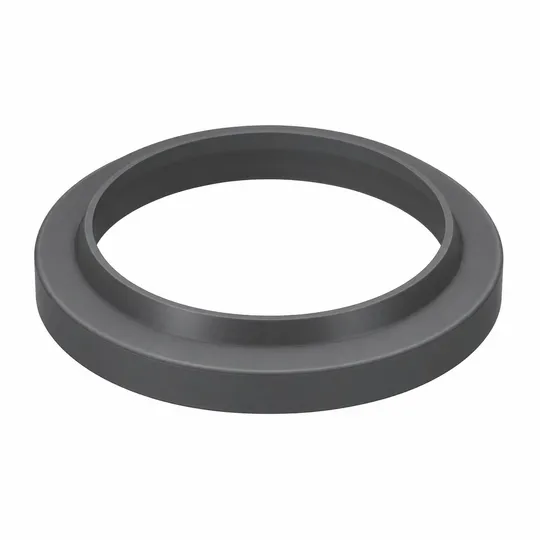

AI product illustration, not to scale. Colors are schematic. Use the product specifications to check dimensions and fit.

Demand validation

Rod Wipers — AN-02 Urethane Wiper Seal

SKU AN-02

AN-02 rod wipers use 90-durometer urethane in an AN profile. Check the exact dimensions, then request availability for a proposed three-wiper pack.

Availability, final price and delivery timing will be confirmed before any purchase. This product is not currently offered for sale.

Request availability

Interest only. No payment collected.

Product specifications

Product specification
AN STYLE WIPER SEAL 90 DURO URE CS: 0.125 IN (3.18 MM) ID: 0.563 IN (14.29 MM) HT: 0.109 IN (2.78 MM) AN-02

Dimensions and construction describe this SKU. Application suitability and final supply terms require confirmation.

Read the source specifications · source checked 2026-09-10.

Request availability

This is not an order. No payment is collected and no charge will be made. We will confirm availability, final price, and delivery timing before any purchase.

Each proposed pack contains 3 supplier sales unit(s). Unit basis: each. This is a proposed Plethara grouping, not a claim about manufacturer packaging.

We use these details to assess interest and contact you about this request. Do not enter card details. Privacy policy

AN-02 dimensions and profile

These rod wipers are the AN-02 size: an AN-style urethane wiper with a listed cross section of 0.125 inch, inside diameter of 0.563 inch and height of 0.109 inch. The metric dimensions recorded for those features are 3.18 mm, 14.29 mm and 2.78 mm respectively. Match the profile as well as the dimensions when checking a replacement.

Check the material and drawing

The specified hardness is 90 durometer. That identifies the listed urethane version; it does not establish suitability for every hydraulic fluid, temperature or cylinder. Compare the AN-02 reference with the equipment parts list and installation drawing. A similar diameter alone does not confirm the correct lip geometry or housing fit.

Use the written dimensions for comparison. The product image is an illustration, not a dimensioned drawing, and should not be used to measure the sealing edge. Pressure-sealing components and other cylinder parts are outside this availability request.

Request the quantity you need

The proposed Plethara pack contains three AN-02 wipers. Enter the number of packs, then check that quantity and the exact SKU on the review screen. Two requested packs represent six wipers. This grouping describes the request and does not promise a supplier package or available inventory.

You provide your name and email so we can follow up. Confirming expresses interest only. Availability, final price and delivery timing must be confirmed separately before any purchase; the form collects no payment.

Questions about AN-02

Are these rod wipers a complete cylinder repair kit?
No. The request identifies AN-02 wipers only. Other seals, wear components and cylinder hardware are not included.
Which material is specified?
The listing identifies 90-durometer urethane. A different material or hardness would require a separate product match.
How many wipers does one requested pack represent?
Three AN-02 wipers. The review screen shows the proposed pack and your requested number of packs before confirmation.
Does confirmation place an order?
No. It records interest in the exact SKU and quantity. No payment is collected and no charge or fulfillment is authorized.
