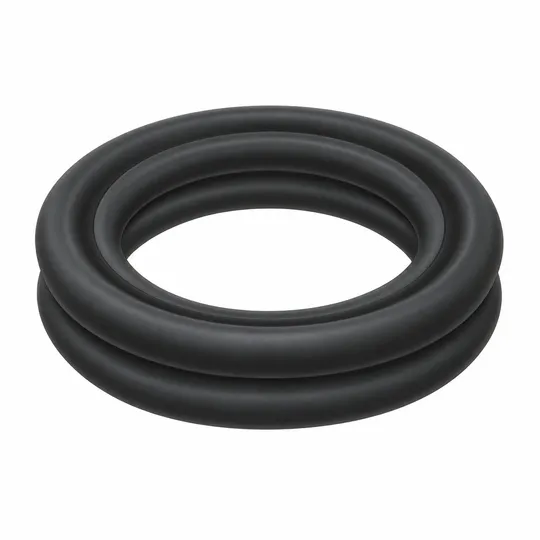

AI product illustration, not to scale. Use the product specifications to check dimensions and fit.

Demand validation

EPDM Quad Rings — QE70005 X-Rings

SKU QE70005

QE70005 quad rings are black, 70-durometer EPDM X-rings in the 005 size. Review the dimensions and request availability for a proposed 25-ring pack.

Availability, final price and delivery timing will be confirmed before any purchase. This product is not currently offered for sale.

Request availability

Interest only. No payment collected.

Product specifications

Product specification
005 EPDM X-RING 70 DUROMETER BLACK CS: 0.070 IN (1.78 MM) ID: 0.101 IN (2.57 MM) 3/32 ID X 7/32 OD X 1/16 W QE70005

Dimensions and construction describe this SKU. Application suitability and final supply terms require confirmation.

Read the source specifications · source checked 2026-09-10.

Request availability

This is not an order. No payment is collected and no charge will be made. We will confirm availability, final price, and delivery timing before any purchase.

Each proposed pack contains 25 supplier sales unit(s). Unit basis: each. This is a proposed Plethara grouping, not a claim about manufacturer packaging.

We use these details to assess interest and contact you about this request. Do not enter card details. Privacy policy

The QE70005 size

These quad rings are the QE70005 EPDM X-ring, listed with a 0.070-inch cross section and 0.101-inch inside diameter. The corresponding recorded metric dimensions are 1.78 mm and 2.57 mm. Use those decimal specifications when comparing the part with an equipment drawing.

Match the profile and compound

The listed construction is black EPDM at 70 durometer. The X-ring profile is part of the product identity: matching an ordinary O-ring's nominal size does not establish an equivalent replacement. Confirm the required profile, material and hardness against the original part specification.

The listing also uses fractional nominal size descriptions. Keep nominal labels separate from the decimal dimensions instead of treating them as identical measurements. Do not select the ring from the illustration's apparent diameter; the illustration is not to scale.

Proposed pack and availability request

One proposed Plethara pack represents 25 QE70005 rings. Requested quantity means packs: for example, two packs represent 50 rings of this exact SKU. This is a proposed grouping for the availability inquiry, not a statement that inventory is reserved or that the supplier packages rings that way.

Review your name, email, product and pack quantity before confirming. We will need to confirm availability, final price and delivery timing before any purchase. No card information is requested and confirming does not create an order.

Questions about QE70005

Are these quad rings made from nitrile?
No. QE70005 is the EPDM, 70-durometer version. A nitrile X-ring would be a different product.
What is the exact inside diameter?
The recorded decimal inside diameter is 0.101 inch, or 2.57 mm. Check the complete size and profile against the equipment requirements.
Does the illustration show a dimensional drawing?
No. It helps identify the product type. Use the source-backed specification for dimensions and fit.
What happens after I confirm interest?
Your request remains linked to QE70005 and the selected pack quantity. No order is placed; supply terms must be confirmed separately.
