The CL-11-CH handle
These cam handles are the CL-11-CH reference. The listing specifies a matching eyebolt size of 1/4-20. That describes the required relationship to a separate component; it does not mean an eyebolt is included with the handle.
Check the complete geometry
The drawing gives nominal A diameter as 3/16 inch and actual A as 0.188 inch. Nominal B is 1/4 inch and actual B is 0.266 inch. C is 2 9/16 inches and E is 0.046 inch. Preserve these drawing labels when reviewing the pivot and surrounding assembly.
The remaining recorded dimensions are F 1/4, G 5/8, H 3/16, J 0.42, K 0.33 and L 0.40 inch. Compare the source drawing rather than assigning your own meaning to a dimension letter. No clamp-force rating or installation torque is established by this page.
Handle only, with matching hardware checked separately

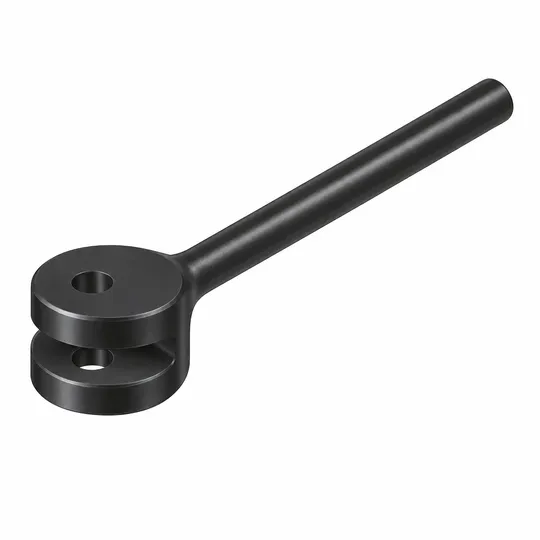

Confirm the fixture's required handle and mating hardware references before a purchase. A matching thread designation alone does not establish clearance for the complete assembly. The illustration shows the general form and cannot replace the dimensioned drawing.
How the cam handle fits into a clamp
The cam-handle family is intended for use with an eyebolt or a separately designed drawbar. Moving the handle changes the contact position along the cam surface to apply clamping action. The family description specifies a continuous-rise cam that can hold at different positions. The mating hardware and fixture arrangement determine how that action is used in your assembly.
For these cam handles, identify the required eyebolt size first, then compare the pivot geometry and the space around the lever. A fixture can have the correct thread designation while still requiring a different pivot or handle length. The 1/4-20 description therefore belongs beside the drawing dimensions on your parts list; it should not replace them.
Reading nominal and actual dimensions
The nominal and actual columns describe the same labelled feature in different ways. For example, B is presented as nominal 1/4 inch and actual 0.266 inch. Keep the decimal value when checking the drawing. Treating every quarter-inch description as an identical physical dimension would lose a distinction that the product table expressly records.
Compare a replacement against the original assembly drawing as well as the component you remove. A worn opening or an unclear photograph is a poor basis for selecting the next handle. Preserve the existing drawing references for the eyebolt, pivot and clamping contact so the person reviewing the request can distinguish a replacement handle from a change to the fixture design.
Plan the number of handles
Count the CL-11-CH locations required by your existing parts list. For example, two fixtures each calling for one of these cam handles would require two individual handles. Additional eyebolts, drawbars and fixture components remain separate entries in that list. The requested quantity identifies complete handles of this one reference, without combining other sizes into an assortment.
Before submitting interest, compare the reference shown above the form with your parts list, check the quantity and use an email address where the final supply information can reach you. The review preserves CL-11-CH as the product identifier throughout the request. Any later agreement to purchase must use the separately confirmed component and supply terms.
Request availability
One proposed unit represents one CL-11-CH handle. Review the exact SKU and requested quantity with your name and email. Confirmation expresses interest only. Availability, final price and delivery timing will be confirmed before any purchase; no payment is collected and no fulfillment is authorized.
Questions about CL-11-CH
- Do these cam handles include an eyebolt?
- No eyebolt is represented as included. The listing names 1/4-20 as the matching eyebolt size.
- Is the A diameter exactly 3/16 inch?
- That is the nominal size. The listing separately gives an actual A diameter of 0.188 inch.
- Is this a window latch or cam-lock fitting?
- No. The researched product is the CL-11-CH industrial cam-handle component.
- Does confirming availability place an order?
- No. It records the component and quantity you are interested in, pending separate supply confirmation.
