The exact packing ring
This chevron packing page covers the 6225-10 N90 vee ring. The researched dimensions are a 0.375-inch inside diameter, 0.875-inch outside diameter and 0.083-inch height. The material is nitrile at 90 durometer. Keep the complete part reference, including N90, when matching an existing ring.
Ring dimensions versus a packing assembly
The listed height describes one ring. It is not the installed height of a complete packing stack. A request for several rings also does not establish the correct number of rings for a particular housing. Compare the equipment's packing arrangement and parts list before deciding whether this exact component is suitable.
The inside and outside diameters must be checked together with the profile and material. An assembly may contain other components with related dimensions, but those do not become included simply because the rings are requested together. No adapters, gland hardware or complete repair kit are represented as part of this product.
Material and application match
The N90 suffix identifies the researched nitrile version at 90 durometer. A fabric-reinforced ring or another elastomer would be a different product and should not be substituted from appearance alone. This page does not establish a pressure, temperature or fluid-compatibility rating for your equipment.

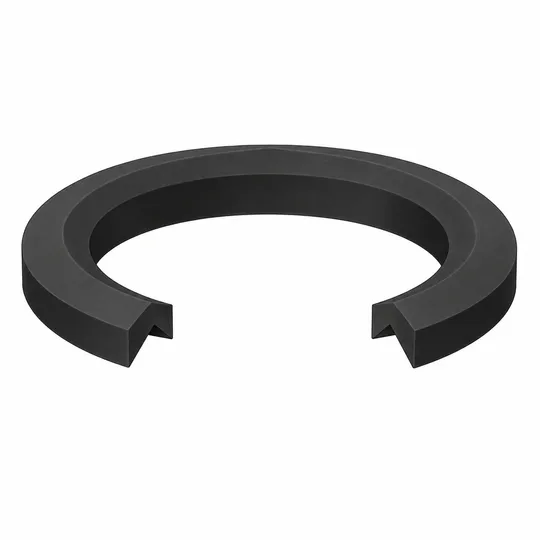

Use the source-backed specification rather than the scale of the illustration to compare the ring. If the original reference is uncertain, resolve that question before a purchase instead of assuming that a matching nominal diameter guarantees a replacement.
Requesting chevron packing
One proposed Plethara pack represents three 6225-10 N90 rings. Requested quantity is the number of these packs. Two packs therefore represent six individual rings, not six complete packing assemblies. The grouping is an availability-request basis, not a supplier-packaging or stock claim.
Enter your name and email, then review the exact SKU and requested quantity. Final confirmation records interest only. Availability, final price and delivery timing will be confirmed before any purchase; no payment is collected and no order or fulfillment is authorized.
Questions about 6225-10 N90
- Is this chevron packing a complete seal set?
- No. The request covers 6225-10 N90 vee rings only. A complete assembly may require other separately identified parts.
- What does the 0.083-inch height describe?
- It is the researched height of one ring, not a complete installed packing stack.
- How many rings are in the proposed pack?
- Three rings of this exact SKU. Confirm the actual ring count required for your equipment separately.
- Can another material be selected?
- This page is for the N90 nitrile version. A different material needs its own verified reference and availability check.
