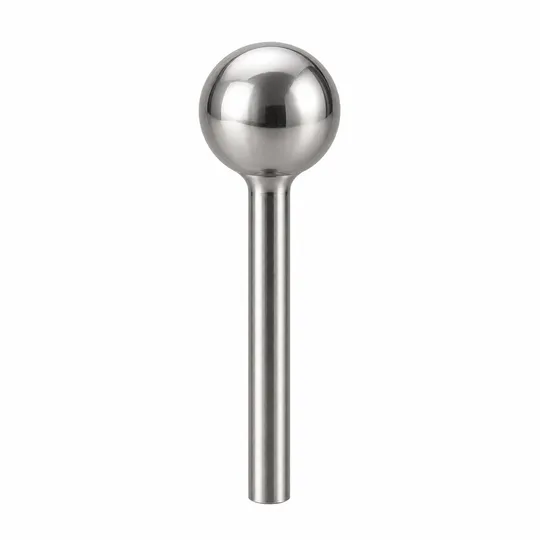

AI product illustration, not to scale. Use the product specifications to check dimensions and fit.

Demand validation

Adjustable Tooling Balls — CL-0-CB Construction Ball

SKU CL-0-CB

CL-0-CB tooling balls have a nominal ¼-inch ball and ⅛-inch shank. Compare the actual diameter limits before requesting this adjustable construction-ball type.

Availability, final price and delivery timing will be confirmed before any purchase. This product is not currently offered for sale.

Request availability

Interest only. No payment collected.

Product specifications

BALL DIA NOMINAL
1/4
BALL DIA ACTUAL
.2500/.2497
A DIA NOMINAL
1/8
A DIA ACTUAL
.1250/.1246
B
.56

Dimensions use the letters in the source drawing; fractional dimensions are inches unless marked otherwise.

Read the source specifications · source checked 2026-09-10.

Request availability

This is not an order. No payment is collected and no charge will be made. We will confirm availability, final price, and delivery timing before any purchase.

Each proposed pack contains 1 supplier sales unit(s). Unit basis: each / listed assembly. This is a proposed Plethara grouping, not a claim about manufacturer packaging.

We use these details to assess interest and contact you about this request. Do not enter card details. Privacy policy

CL-0-CB dimensions

These tooling balls are the adjustable construction-ball type identified as CL-0-CB. The listing specifies a nominal ball diameter of 1/4 inch and nominal shank diameter of 1/8 inch. Actual diameter limits are supplied separately, which matters when comparing a precision component with a drawing.

Nominal size and actual limits

The ball diameter limits are 0.2500 and 0.2497 inch. The shank, labelled A on the source drawing, has limits of 0.1250 and 0.1246 inch. The drawing's B dimension is 0.56 inch. Preserve those labels when checking the part; a nominal fraction is a convenient size name, not a replacement for the actual limits.

Check the drawing used for your fixture or inspection setup, including how the shank is located and retained. This page describes one adjustable-type construction ball. It does not include a holding fixture, measuring instrument or a certified calibration service. No accuracy claim for a completed assembly can be inferred from the component dimensions alone.

Choosing this exact component

Compare CL-0-CB with the exact part reference in your design. Other tooling balls can have different ball sizes, shank sizes or mounting arrangements. The picture shows the component's general form and is not a scale reference. Use the listed dimensions and the source drawing to decide whether this is the part for which you want availability checked.

Request availability

The proposed request unit is one CL-0-CB construction ball. Select the number of units needed and review the exact SKU with your name and email. A request for two units means two of this component, not two fixture assemblies.

The confirmation records interest only. Availability, final price and delivery timing will be confirmed before any purchase. No payment is collected and no charge or fulfillment is authorized.

Questions about CL-0-CB

Are these tooling balls a fixed-height or adjustable type?
CL-0-CB is listed as the adjustable construction-ball type. Match that mounting arrangement to your design.
What is the ball's actual diameter?
The source gives diameter limits of 0.2497 to 0.2500 inch for the nominal 1/4-inch ball.
Is a fixture or measuring device included?
No. The request is for the CL-0-CB component. It does not include a fixture, instrument or calibration service.
Can I order a different ball diameter here?
This page records interest only in CL-0-CB. Another diameter needs its own verified product reference and availability confirmation.
